Data Domain Makes Storage More Efficient and Affordable
Since its inception, Data Domain has been focused on bringing new storage and network efficiencies to the enterprise data storage arena on a single, integrated product platform, to improve storage economics and simplify data management for its customers.
Data Domain high-speed inline deduplication technology has proven to be the key enabler that has helped customers reduce or eliminate the use of tape for backup and recovery, experience longer onsite retention times for reference and other nearline data, and leverage network-efficient replication capabilities for disaster recovery.

How? Massive Data Deduplication
Data Domain’s high-speed inline deduplication technology identifies redundant files and data at a variable segment length and highly granular level —as they are being stored—reducing the amount of backup data by an average of 20x, and as much as 60x for virtual environments. Data Domain deduplication storage systems are designed for a range of use cases across an expanding disk-based storage tier. As customers continue to reduce their reliance on tape for backup and disaster recovery (DR), they are also using Data Domain systems for archiving, long term online retention of enterprise data for reference, litigation support and regulatory compliance, and a host of other nearline applications.

As enterprise data continues to expand exponentially, customers face the costly challenge of storing and managing all that information. As the leading provider of deduplication storage systems, Data Domain helps enterprises continue to realize dramatic cost and efficiency improvements minimize reliance upon tape technology, and still meet stringent DR and compliance guidelines.

Retain. Replicate. Recover.
Deduplication enables dramatically longer on-site retention of data — months instead of day — keeping data highly available. As data is deduplicated, Data Domain Replicator software moves only the unique new data segments across the wide area network (WAN) for DR, remote office data protection and multi-site tape consolidation. Replicated files are safely off-site and can now be recovered in seconds or minutes, without needing to locate, transport or mount a tape.

In addition, Data Domain systems offer advanced levels of continuous data verification, fault detection and healing. Data Domain’s proprietary Data Invulnerability Architecture ensures that stored data is accurate and recoverable. Data Domain systems are compatible with leading backup and archive applications, so integration into existing infrastructures is fast and seamless.

Award-Winning Products
Data Domain offers a comprehensive range of products to meet the nearline storage needs of enterprises of all sizes, as they seek to reduce costs and simplify data management. All Data Domain systems are simple to deploy and offer customers the flexibility of NAS, Symantec OpenStorage (OST) option or VTL (virtual tape library) interfaces.
Data Domain DDX Array Series: The industry’s most scalable, high performance deduplication storage systems for the data center. A DDX array offers up to 28 petabytes of capacity, up to 22.4 TB/hour of throughput
and includes management and support for up to 960 remote locations.
Data Domain Appliance Series: The industry’s highest throughput deduplication appliances with integrated disks, for costeffective, scalable deduplication storage.
Data Domain Gateway Series: Data Domain gateways extend the benefits of deduplication to third party external storage systems. Data Domain gateways transform third party Fibre Channel-attached disk arrays into highly cost-effective, efficient and reliable deduplication storage systems.
Data Domain Replicator Software: Replicator software provides networkefficient, automated, ultra-safe replication for DR, remote office data protection and multi-site tape consolidation. Replicator software vaults or asynchronously replicates inline only the compressed, deduplicate data over the WAN, reducing bandwidth
usage, lowering costs, and reducing or eliminating the use of tape.
Data Domain Virtual Tape Library Software: By emulating multiple tape libraries over a Fibre Channel interface, this option provides deduplication storage for FC SAN environments in large enterprises.
OpenStorage (OST) Software Option: This allows a Symantec NetBackup 6.5 Media Server to manage an optimized connection between Data Domain systems and an administrator to to backup, recover and control replication from the NBU console.

1. Mix of typical enterprise data (file systems, databases, mail, developer files), full backup weekly, internal backup daily, to system capacity.
2. Mix of typical enterprise data (file systems, databases, mail, developer files), internal backup daily, to system capacity.
3. All capacity values are calculated using Base 10 arithmetic (i.e. 1TB = 1,000,000,000,000 bytes) and the maximum raw capacity configuration.
4. Includes support for 6-drive capacity expansion, available separately.
5. Includes support for up to 2 add-on shelves for the DD565, 3 add-on shelves for the DD580 and 6 add-on shelves for the DD690, available separately.
6. Fully configured DDX Array with 16 DDX Controllers.

Industry-Defining Technology
Data Domain Global CompressionTM technology combines high-speed inline deduplication with local compression, after a granular segment-length comparison of data. Only unique segments are saved. Data Domain Data Invulnerability Architecture offers advanced data verification and data integrity, including RAID-6

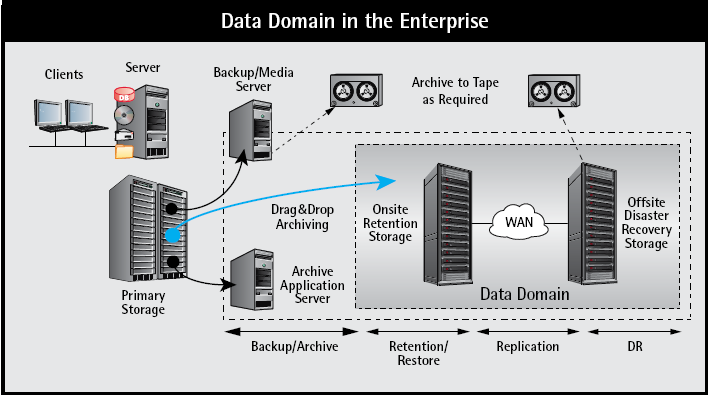

Data Domain systems deduplicate data inline during the backup process at speeds of up to 1.4 TB per
hour (22.4 TB per hour for the DDX Array). Data is stored on-site for longer term retention on disk and immediate
restores. The deduplicated data can also be replicated over the WAN to a remote site for disaster
recovery purposes or for consolidating tape backups to a central location. Data Domain systems provide
a full range of replication options, including selective replication, many-to-one and bi-directional replication.

protection. Continuous fault detection, healing, and write verification ensures that backup data is accurate and recoverable.
Data Domain Stream Informed Segment Layout (SISL) Architecture, leverages the continued advancement of CPU performance to add direct benefit to system throughput scalability. Other deduplication technologies require additional disk drives or “spindles” to achieve the throughput speeds needed for efficient deduplication. Ironically, these other hybrid or “post-process” technologies mandate the use of more disk drives to offload data before deduplicating, not to mention longer times to “DR readiness.”
Data Domain Replication Technology transfers only the deduplicated and compressed unique changes across any IP network, requiring a tiny fraction of the bandwidth, time and cost, compared to traditional replication methods.

Easy Integration with Existing Infrastructures
Data Domain products and technologies enable new efficiencies in enterprise data protection, integrate with existing infrastructures, and are compatible with leading enterprise backup software and archiving
applications such as:
Symantec, EMC, IBM, HP, CommVault, Computer Associates, Atempo and BakBone
… as well as leading enterprise applications:
Database: Oracle, SAP, DB2
Email: Microsoft Exchange
Virtual Environments: VMware
